Sunrover

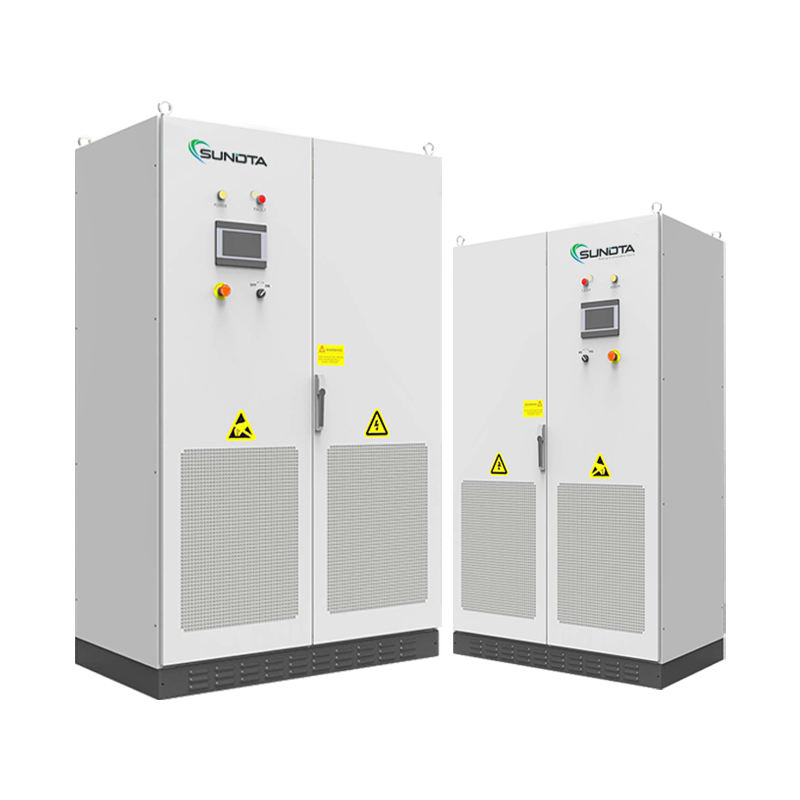

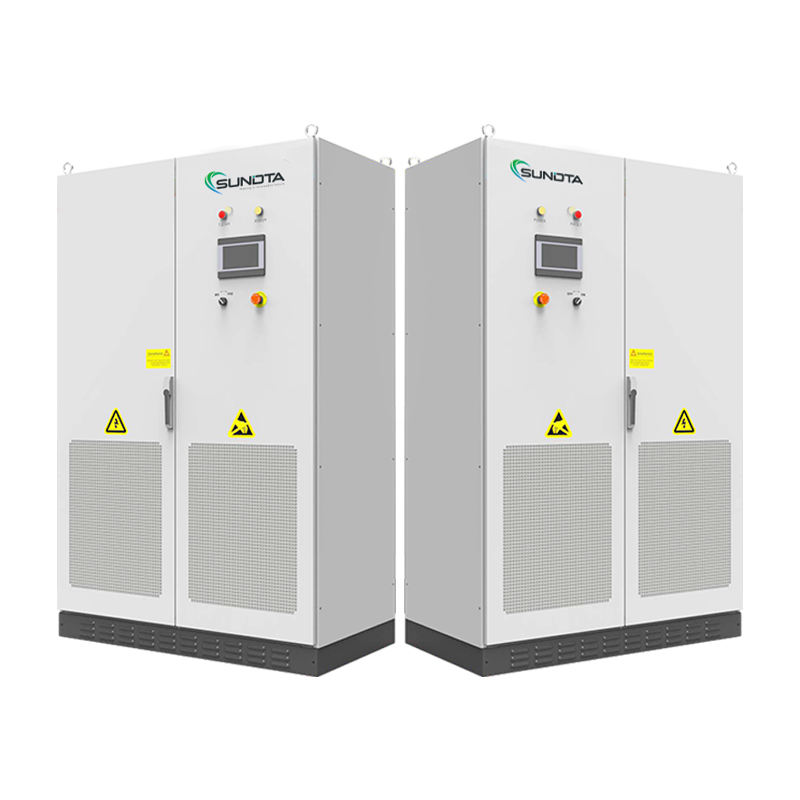

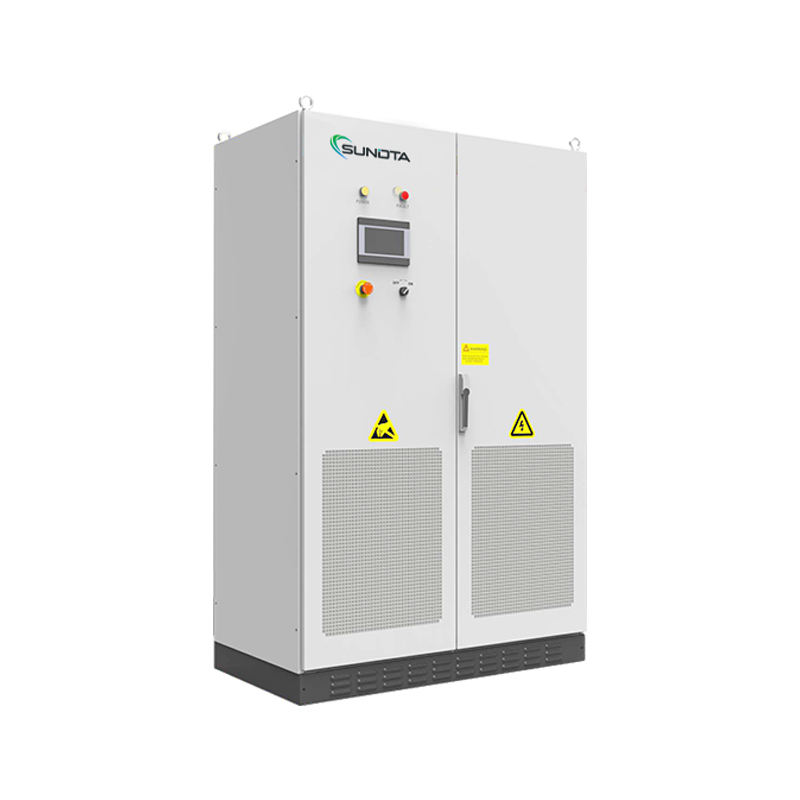

Atess HPS Hybrid 3 Phase Solar Inverter with Touch Screen 30kw 50kw 100kw 150kw Triple Output
Type DC/AC Inverters Brand Name Sunrover Place of Origin Anhui, China Model Number HPS30 Weight 45kg Input Voltage 400V Output Current 43A Output Frequency 50/60Hz(Optional) Output Type Triple Size 700/1660/600mm Type DC/AC Inverters Inverter Efficiency 97.6% Weight 45kg Application Hybrid Solar Power System Interface RS485/CAN Packaging and delivery Selling Units Single item Single package size 70X20X60 cm Single gross weight 45.0 kg Lead time
Specifications
| Price | $8,811.38 |
|---|---|
| Condition | new |
| Availability | In stock — 150 available |
| Type | |
| DC/AC Inverters | |
| Brand Name | |
| Sunrover | |
| Place of Origin | |
| Anhui, China | |
| Model Number | |
| HPS30 | |
| Weight | |
| 45kg | |
| Input Voltage | |
| 400V | |
| Output Current | |
| 43A | |
| Output Frequency | |
| 50/60Hz(Optional) | |
| Output Type | |
| Triple | |
| Size | |
| 700/1660/600mm | |
| Type | |
| DC/AC Inverters | |
| Inverter Efficiency | |
| 97.6% | |
| Weight | |
| 45kg | |
| Application | |
| Hybrid Solar Power System | |
| Interface | |
| RS485/CAN | |
| Packaging and delivery | |
| Selling Units | |
| Single item | |
| Single package size | |
| 70X20X60 cm | |
| Single gross weight | |
| 45.0 kg | |
| Lead time | |
| Module | |
| HPS30 | |
| AC (Grid-connected) | |
| Apparent power | |
| 33kVA | |
| Rated power | |
| 30KW | |
| Rated voltage | |
| 400V | |
| Rated current | |
| 43A | |
| Voltage range | |
| 360V-440V | |
| Rated frequency | |
| 50/60Hz | |
| Frequency range | |
| 45-55/55-65Hz | |
| THDI | |
| ﹤3% | |
| PF | |
| 0.8 lagging-0.8 leading | |
| AC connection | |
| 3/N/PE | |
| AC input | |
| 200kVA | |
| AC (Off-grid) | |
| Apparent power | |
| 33kVA | |
| Rated power | |
| 30KW | |
| Rated voltage | |
| 400V | |
| Rated current | |
| 43A | |
| THDU | |
| ≦2% linear | |
| Rated frequency | |
| 50/60Hz | |
| Overload capability | |
| 110%-10mins,120%-1min | |
| DC (Battery and PV) | |
| Max.PV ope-circuit voltage | |
| 1000V DC | |
| Max.PV power | |
| 45kWp | |
| PV MPPT voltage range | |
| 480V-800V DC | |
| Battery voltage range at Max.charge power | |
| 450V-600V | |
| Battery voltage range | |
| 352-600V | |
| Max.charge power | |
| 45KW | |
| Max.discharge power | |
| 33KW | |
| Max.charge current | |
| 100A | |
| Max.discharge current | |
| 93A | |
| General Information | |
| Protecyion degree | |
| IP 20 | |
| Noise emission | |
| ﹤65dB(A)@1m | |
| Operating temperature | |
| -25℃-55℃ | |
| Cooling | |
| Forced-air | |
| Relative humidity | |
| 0-95% non-condensing | |
| Maximum altitude | |
| 6000m (derate over 3000m) | |
| Dimension(W/H/D) | |
| 700x1660x600mm | |
| Weight | |
| 355kg | |
| Bulid-in transformer | |
| Yes | |
| Transfer between on/off grid | |
| Automatic≦10ms | |
| Standby consumption | |
| ﹤30W | |
| Communication | |
| Display | |
| Touch screen | |
| Communication | |
| RS485/CAN | |
| Certifaicate | |
| CE,MEA,PEA,AS4777.2,EN61000-6-4:2007+A1:2011,EN6100-6-2:2005,EN62109-1:2010,EN62109-2:2011,EN50549-1:2019,IEC62109.1,IEC62109.2,NRS | |
| 097-2-1:2017,G99,VDE-AR-N 4105:2018,DIN VDE V 0124-100:2020-06 |
$8,811.38
In stock — 150 available
1
Total$8,811.38
