IPEL-P8040X-IRW2-AI

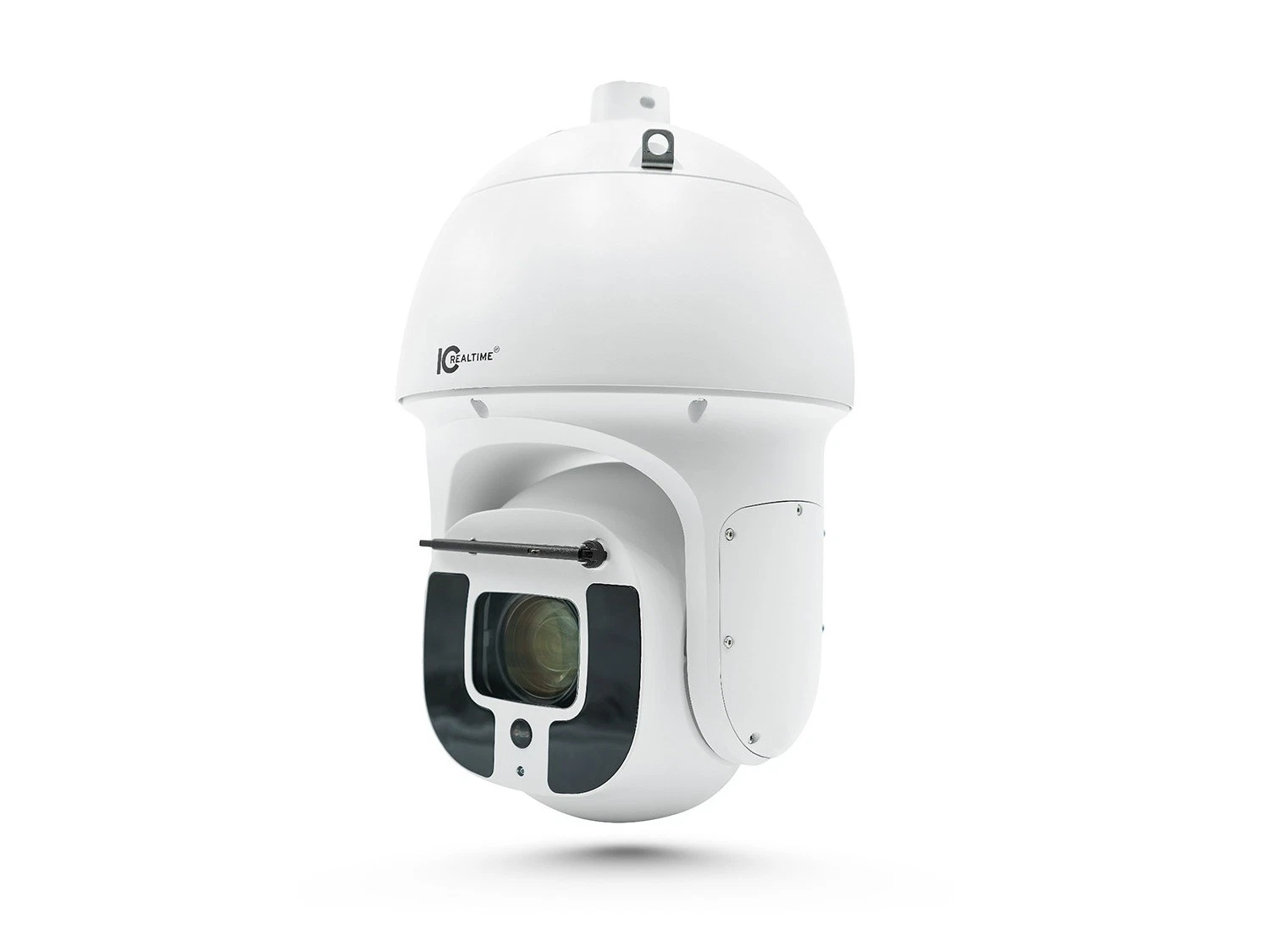

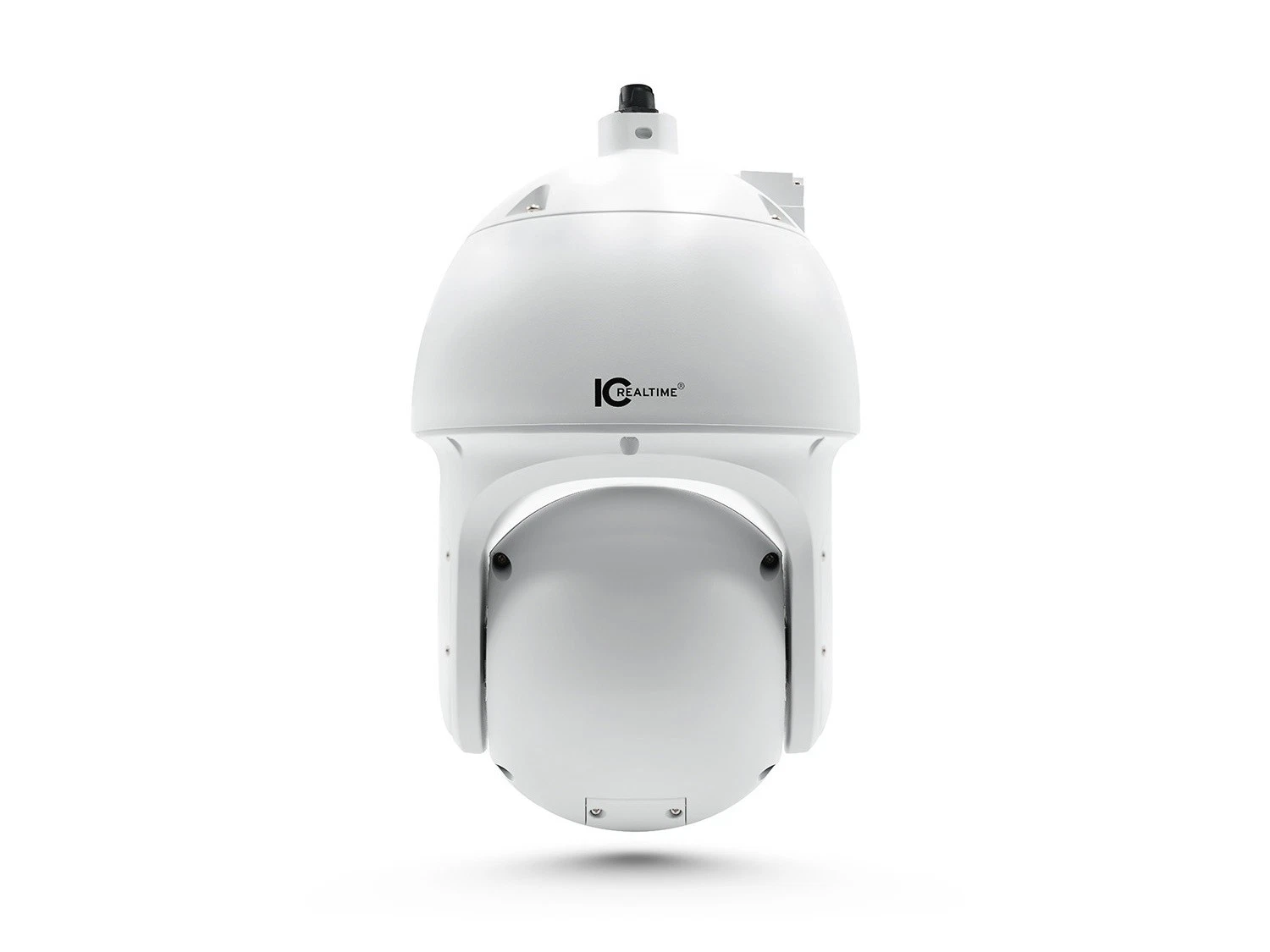

ICRealtime IPEL-P8040X-IRW2-AI 8MP IP Full Size 4K Starlight PTZ Camera
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details
Specifications
| Price | $8,090 |
|---|---|
| Condition | new |
| Availability | In stock — 100 available |
| 1/1.8” STARVIS™ CMOS | |
| Powerful 40x optical zoom | |
| Max. 30fps at 4K (3840x2160) | |
| Auto Tracking, IVS and Perimeter Protection | |
| Starlight support, IR distance up to 1640ft | |
| Included Mount and 36v power supply, Hi-PoE support, IP67 | |
| Made In South Korea And Conforms To The Trade Agreements Act (TAA) | |
| Specifications: | |
| Camera | |
| Image Sensor: 1/1.8" 8 Megapixel CMOS | |
| Effective Pixels: 3840(H) x 2160(V) 8 Megapixels | |
| RAM/Rom: 8GB/2GB | |
| Scanning System: Progressive | |
| Electronic Shutter Speed: Support | |
| Minimum Illumination: Color: 0.005 lux at F1.4 | |
| B/W: 0.0005 lux at F1.4 | |
| 0 lux at F1.4 (illuminator on) | |
| Illumination Distance: Distance up to 1640ft (500m) | |
| Illumination On/Off Control: Auto/Manual | |
| Illumination LEDs: 10 | |
| IR Wavelength: 850 nm | |
| Camera Illumination Type: IR | |
| Lens | |
| Lens Type: Varifocal | |
| Focal Length: 5.6mm-223mm | |
| Max. Aperture: F1.4–F4.5 | |
| Angle of View: H: 63.9°–2.0°; | |
| V: 37.3°–1.1 ° | |
| Optical Zoom: 40x | |
| Focus Control: Auto/Manual | |
| Close Focus Distance: 3.94 - 39.37in (100 - 1000mm) | |
| DORI - Detect: 14435ft (4400m) | |
| DORI - Observe: 5708ft (1740m) | |
| DORI - Recognize: 2887ft (880m) | |
| DORI - Identify: 1443ft (440m) | |
| PTZ | |
| Pan/Tilt Range: Pan: 0° to 360° | |
| Tilt: -30° to +90°, auto flip 180° | |
| Manual Control Speed: Pan: 0.1° ~240° /s; | |
| Tilt: 0.1° ~100° /s | |
| Preset Speed: Pan: 240 degrees/s Tilt: 120 degrees/s | |
| Presets: 300 | |
| PTZ Mode: 5 Pattern / 8 Tour / Auto Pan / Auto Scan | |
| Speed Setup: Human-oriented focal Length / speed adaptation | |
| Power up Action: Auto restore to previous PTZ and lens status after power failure | |
| Idle Motion: Preset; Tour; Pattern; Scanning | |
| Protocol: ICR-SD, Pelco-P/D (Auto recognition) | |
| Wiper: Yes | |
| Tracking Trigger Mode: Yes, Perimeter Protection (Tripwire and Intrusion) | |
| Intelligence | |
| IVS: Tripwire, Intrusion, Object Abandoned/ Missing, Fast-Moving, Crowd Gathering Estimation, Parking and Loitering Detection | |
| Audio Detection | |
| Advanced Intelligent Functions: Perimeter Protection- Tripwire and intrusion (Supports human and vehicle | |
| recognition) + Auto Tracking | |
| Metadata support | |
| Video | |
| Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG (Sub Stream 1) | |
| Streaming Capability: 3 Streams | |
| Resolution: 4K (3840 x 2160) / 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / CIF (352 x 288 / 352 x 240) | |
| Frame Rate: Main stream: 4K / 1080P / 1.3M / 720P(1 - 25/30fps) Sub stream1: D1 / CIF(1 - 25/30fps) Sub stream2: 1080P / 720P / D1(1 - 25/30fps) | |
| Bit Rate Control: CBR/VBR | |
| Bit Rate: H264: 512 kbps–16384 kbps | |
| H265: 256 kbps–10240 kbps | |
| Day/Night: Auto(ICR) / Color / B/W | |
| Backlight Compensation: BLC / HLC | |
| White Balance: Auto; Indoor; Outdoor; Tracking; Manual; Sodium Lamp; Natural; Street Lamp | |
| Gain Control: Auto / Manual | |
| Noise Reduction: 2D / 3D | |
| Motion Detection: Support | |
| Region of Interest: Support | |
| Electronic Image Stabilization (EIS): Support | |
| Digital Zoom: 16X | |
| Flip: 180° | |
| Privacy Masking: Up to 24 areas | |
| WDR: 120 dB | |
| Audio | |
| Compression: G.711a; G.711mu; G.726; AAC; G722.1; G.729; MPEG2-Layer2; G723 | |
| Network | |
| Ethernet: RJ-45 (10/100Base-T) | |
| Protocol: IPv4 / IPv6 / HTTP / HTTPS / SSL / TCP/IP / UDP / UPnP / ICMP / IGMP / SNMP / RTSP / RTP / SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter / QoS / Bonjour / 802.1x | |
| Interoperability: ONVIF Profile S&G&T; CGI | |
| Streaming Method: Unicast / Multicast | |
| Max. User Access: 20 Users | |
| Edge Storage: NAS / Local PC for instant recording / Micro SD card 256GB | |
| Web Viewer: IE, Chrome, Firefox, Safari | |
| Management Software: Smart ICRSS/ DSS | |
| Smart Phone: Android, iOS | |
| Interface | |
| Video Interface: 1 port (BNC 1.0V[p-p] 75 Ohms) | |
| RS485: 1 | |
| Audio I/O: 1/1 channel In/Out | |
| Alarm I/O: 7/2 | |
| Memory Slot: Micro SD Card 256GB | |
| Electrical | |
| Power Supply: DC 36V/2.23A (±25%), Hi-PoE | |
| TVS 6000V lightning protection; surge protection; voltage transient protection | |
| Power Consumption: 30W; 48W (IR light on) | |
| Enviromental | |
| Operating Conditions: -40° F ~ +140° F (-40° C ~ +60° C) / Less than 95% RH | |
| Ingress Protection: IP67 | |
| Construction | |
| Casing: Metal | |
| Dimensions: 16.36" × 10.31" (415.6 mm × 26 2 mm) | |
| Gross Weight: 29.76lb (13.5kg) | |
